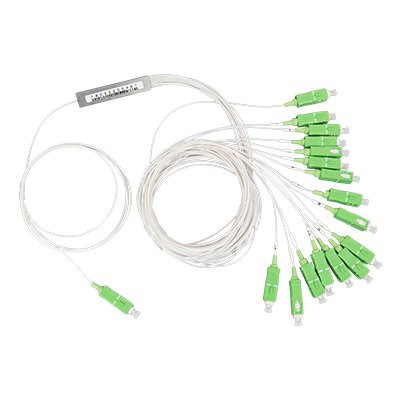

SC/APC 1X16 PLC Splitter is a passive optical component used to split the optical signal into multiple paths.SC/APC refers to the connector type, which is a common type of fiber optic connector. 1X16 means that one input fiber is split into 16 output fibers. So it splits the input signal into 16 paths. PLC stands for Planar Lightwave Circuit. This means that the separation of light is achieved inside the integrated optical circuit, rather than using discrete optical components. PLC splitters tend to be more compact, stable and reliable than discrete component splitters.
Storage environment: When storing SC/APC 1X16 PLC Splitter, it should be kept in a dry, ventilated and light-proof place. If possible, they should be stored in dust bags or foam sheets to ensure that the taps are not damaged or contaminated in any way during storage.
Features:
1. Loss is not sensitive to the wavelength of light, and can meet the transmission needs of different wavelengths.
2. The light is evenly distributed, and the signal can be evenly distributed to users.
3. The structure is compact and the volume is small, it can be directly installed in the existing various transfer boxes without leaving a large installation space.
4. There are many shunt channels for a single device, which can reach more than 32 channels.
5. Wide operating wavelength
6. Low insertion loss
7. Low polarization-dependent loss
8. Good consistency between channels
9. High reliability and stability
10. RoHS compliant
11. Can provide different types of connectors according to customer needs, fast installation, reliable performance
Parameter can | Unit | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Operating wavelength | nm | 1260-1650 | |||||
Intertion loss with Connectors | dB | ≤ 4.1 | ≤ 7.4 | ≤ 10.5 | ≤ 13.8 | ≤ 17.1 | ≤ 20.4 |
Uniformity | dB | ≤ 0.8 | ≤ 0.8 | ≤ 0.8 | ≤ 1.0 | ≤ 1.5 | ≤ 2.0 |
PDL | dB | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 |
WDL | dB | ≤ 0.8 | ≤ 0.8 | ≤ 0.8 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 |
Return loss | dB | UPC ≥ 50 APC ≥ 55 | |||||
Directivity | dB | ≥ 55 | |||||
Standard input fiber cable | mm | Φ0.9/2.0/3.0mm | |||||
Standard Output fiber cable | mm | Φ0.9/2.0/3.0mm | |||||
Fiber Type | G657A1 or Customized | ||||||
Operating temperature | °C | −40∼+85 | |||||
Storage temperature | °C | −40∼+85 | |||||
Application
PLC Splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small size, wide working wavelength range, high reliability, and good splitting uniformity. It is especially suitable for passive optical networks (EPON, BPON, GPON, etc.) ) Connect the central office and terminal equipment and realize the branching of optical signals. Suitable for small space installation.
Packaging and Shipping
The SC/APC 1X16 PLC Splitter should be packed and shipped with care to ensure that the splitter will not suffer any damage or loss during transportation and storage.
Packaging: They are usually packed in blister boxes and cardboard boxes. Blister boxes provide cushioning and protection, while cardboard boxes protect the splitter from dust and contamination.
