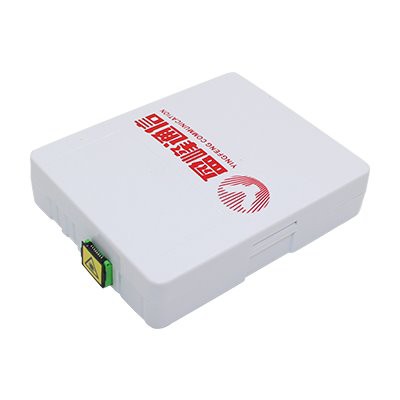

1 Cores Fiber Optical Wall Outlet Box is a common terminal product in FTTH solutions. Easy Operation, fasten the cable safely. It has many functions, insert a variety cables by so many ways, and firmly fixed optical fiber and optical cable, pull off force exceed 50N, will not cause damage to the fiber, protect the fiber reduce the risk of potential damage, complete the access and port output of the fiber, also no extra insertion loss.
1 Cores Fiber Optical Wall Outlet Box usually consists of a small housing made of plastic or metal. It has a removable cover that allows access to the interior for installation and maintenance. The box is designed to protect fiber optic connections from dust, moisture and other environmental factors.
Features
1. The wall outlet termination box can be realized: outdoor optical cable fixing, leather line optical cable fixing, adapter fixing, and fast field connector fixing. Pull-off force is greater than 50N, fixed and reliable.
2. The wall outlet termination box can be realized: single-core sheathed optical cable access to single-port output inside and outside the wall, indoor and outdoor dual-core sheathed optical cable access to dual-port output, outdoor optical cable access to single-port output, outdoor optical cable access to multi-pigtail output The outdoor optical cable is connected to the multi-skin line output, and is used in multiple occasions and multiple demand environments.
3. The wall outlet termination box is easy to operate and has low construction intensity.
4. The wall outlet termination box is designed with a large arc shape to ensure that the fiber optic cable placed in it will not be damaged when subjected to external forces, affecting the quality of communication.
5. For home or work area (FTTD) fiber interface.
6. Connecting type: SC, LC with common model adapters.
7. Using high-quality ABS material, has a certain fire resistance.
8. With dustproof device to prevent dust from entering.
9. Scope of application 3.1 × 2.0mm drop cable or patch cable
More Products
In addition to the 1 Cores Fiber Optical Wall Outlet Box, Surplus Fiber offers a variety of fiber optic panel boxes designed to meet a wide range of installation requirements and accommodate a wide range of fiber optic connections. These panel boxes provide a centralized and organized way to manage and terminate fiber optic cables within the network infrastructure.
Dimensions and Capacity | |
Dimensions (H*W*D) | 100mm*80mm*22mm |
Color | White |
Weight | 75g |
Adapter Type | SC Simplex/LC Duplex |
Adapter Capacity | 1 pcs |
Working Temperature | -40°C～+65°C |
Shipping Information | |
Package Contents | Termination box, |
Package Dimensions(W*H*D) | 450mm*450mm*250mm(200pcs) |
Packaging | Individual carton box |
Weight | 15 kg(200pcs) |
