1X3 Single Mode Tree Broadband Optical Coupler (RoHS)

We constantly adapt to the needs of the market, give full play to our own advantages, speed up technological transformation, strengthen production management and stabilize 1X2 Micro PLC Splitter, SC/APC Coupler, fiber mu connector quality. As we bear in our mind that innovation is essential to our growth, new product development is constantly. We must continually seek to rationalize all matters involved in our operations in order to improve the quality and efficiency of our work.

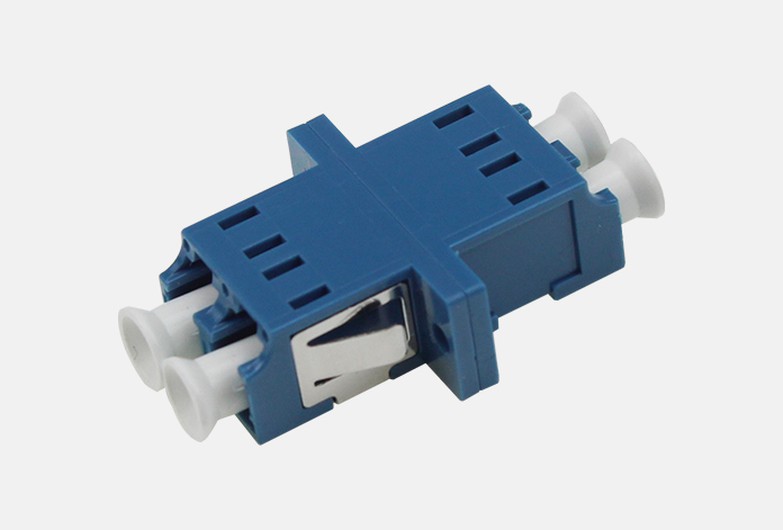

LC to LC coupler for connecting fiber optic connectors with excellent performance. It is equipped with high temperature, acid and alkali resistance, as well as a high density zirconia sleeve. This design ensures its reliability under various environmental conditions.

The coupler not only has good optical characteristics, but also ensures high mechanical stability for high-density fiber optic cabling applications. Whether in data centers, enterprise networks or other scenarios where stable connectivity is required, the LC to LC coupler provides an excellent connectivity solution that ensures efficient and stable data transmission.

There are two options for LC to LC coupler: with skylight and without skylight

LC to LC coupler has a variety of dust caps to choose from, and the color of the dust cap can be customized

Product Description

1. Apply for CATV, LAN, Telecom network, test equipment, LC connectors

2. Multimode or Single Mode, OM3,OM4 optional

3. Ceramic sleeve, ABS housing

4. Insertion Loss≤ 0.2dB

5. Operating temp.: -40° C~+85° C

6. Durability > 1000 times

7. Color: Blue (upc/SM), Green (apc), Beige (pc/MM), Aqua(OM3),Violet(OM4)

8.Adapter is supplied with dust caps.

More products

All the adapters in the picture are on sale, please contact customer service for consultation

YingFeng produce diversfied types of adapters including FC,SC,ST,LC,MTRJ,E2000,MPO,FC-SC,FC-ST,SC-ST,LC-FC,LC-SC etc.

FC, SC, ST, and LC adapters are the most widely used in fiber optic networks, with each type having its own unique features and benefits. FC (Ferrule Connector) is a threaded connector that provides excellent mechanical stability, making it ideal for high vibration environments. SC (Subscriber Connector) is a push-pull connector that is easy to install and provides good performance in high-density applications. ST (Straight Tip) is a bayonet-style connector that is easy to install and durable, making it ideal for harsh environments. LC (Lucent Connector) is a small form factor connector that is ideal for high-density applications.

Company Show

Zhejiang Yingfeng Optical Communication Co., Ltd. is an enterprise integrating R&D, production, sales and service. Specializing in the manufacture and sale of products in the field of optical fiber communication. We are committed to providing first-class connection solutions, site solutions, data center solutions and professional services for domestic and foreign operators.

Our Certificate

Frequently Asked Questions

1.How long will it take to ship?

......Ship out about 15 days after the order is confirmed.

2.Are you a factory or a trader?

......We are the factory.Welcome to visit our factory at any time.

3.What's your MOQ?

......Low MOQ, 1pc for sample checking is available

4.Do you provide customized services?

......Yes, we provide customized services, According to customer requirements and description

In the use of products, it can help customers to select the appropriate 1X3 Single Mode Tree Broadband Optical Coupler (RoHS), and provide technical support for after-sales service. We are going to do our greatest to satisfy or exceed customers' prerequisites with excellent goods, advanced concept, and economical and timely company. We create more value for customers by providing overall solutions and comprehensive services.
