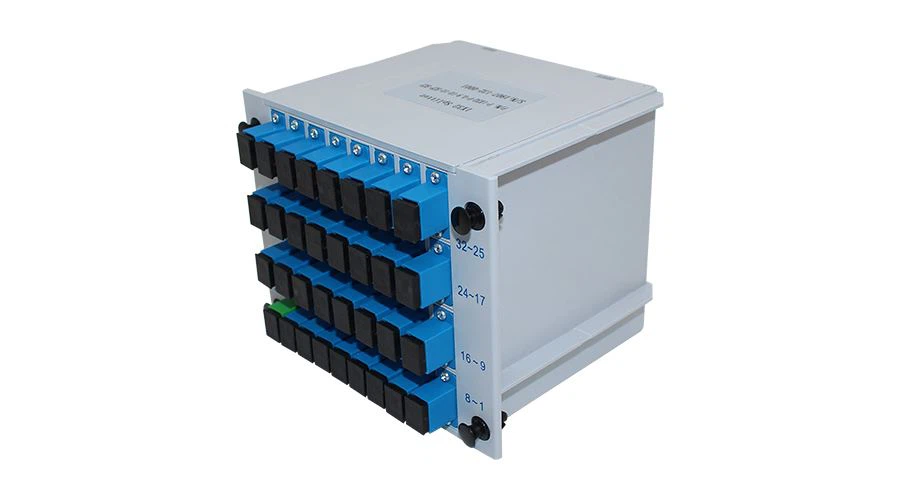

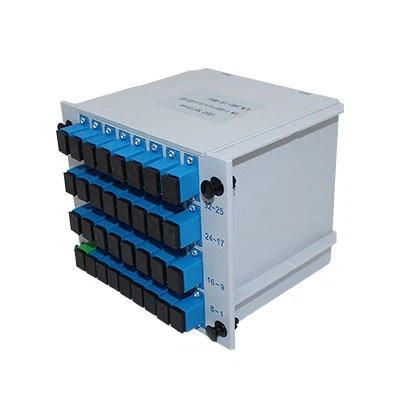

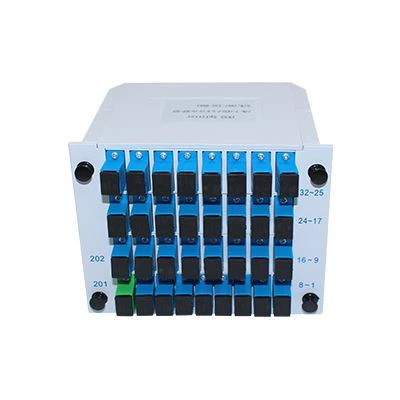

1x32 Optical Splitter

The 1x32 optical splitter (PLC Splitter) is an optical waveguide technology for optical power management devices manufactured using silicon dioxide. It is designed for use in FTTx passive optical networks, CWDM, DWDM and fibre optic TV systems. PLC splitters are responsible for distributing optical signals from the central office (CO) to multiple sites. Our full range of 1*N and 2*N splitter products are tailored to specific application scenarios.

The 1x32 optical splitter we offer is designed to be both space-saving and user-friendly. We prioritize the use of high-quality imported materials in order to ensure that our product not only performs well but also has a long lifespan.



Features

1. Our 1x32 Optical Splitter maintains consistent output levels and minimizes signal distortion regardless of temperature fluctuations.

2. Our splitters are designed for high performance optical signal splitting with low insertion loss and high return loss.

3. Highly interchangeable and repeatable, which means it can be easily interchanged with other optical components without compromising performance.

Parameter can	Unit	1x2	1x4	1x8	1x16	1x32	1x64
Operating wavelength	nm	1260-1650
Intertion loss with Connectors	dB	≤ 4.1	≤ 7.4	≤ 10.5	≤ 13.8	≤ 17.1	≤ 20.4
Uniformity	dB	≤ 0.8	≤ 0.8	≤ 0.8	≤ 1.0	≤ 1.5	≤ 2.0
PDL	dB	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3
WDL	dB	≤ 0.8	≤ 0.8	≤ 0.8	≤ 1.0	≤ 1.0	≤ 1.0
Return loss	dB	UPC ≥ 50 APC ≥ 55
Directivity	dB	≥ 55
Standard input fiber cable	mm	Φ0.9/2.0/3.0mm
Standard Output fiber cable	mm	Φ0.9/2.0/3.0mm
Fiber Type		G657A1 or Customized
Operating temperature	°C	−20∼+70
Storage temperature	°C	−40∼+85

Applications

1.Optical Signal Distribution

2.Data Communications

3.Lan and CATV System

4.FTTX Deployment

5.FTTH Network

6.Passive Optical Networks (PON)

7.Measuring System and Laser System

8.DWDM and CWDM Systems



Packaging and shipping

Package

The 1x32 optical splitter is packed in a plastic bag and the outer packaging we usually pack in a neutral brown cardboard box. If you require special packaging, you can contact us and we can pack to suit your needs.

Delivery time.

7-15 days, Yingfeng's production scale allows us to provide product to clients in relatively short time. If the order quantity is small (less than 10,000 pieces), our normal delivery time would be within 7 days after placing order.the exact delivery date should be determined according to the production season and the quantity ordered.

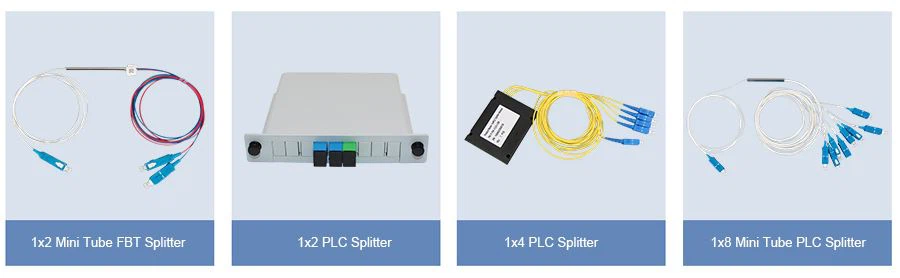

Related products

We have our own quality control department and are 100% tested before leaving the factory. We have also obtained many certifications such as CE and RoHS to ensure the quality of our products, so you can choose us with confidence.

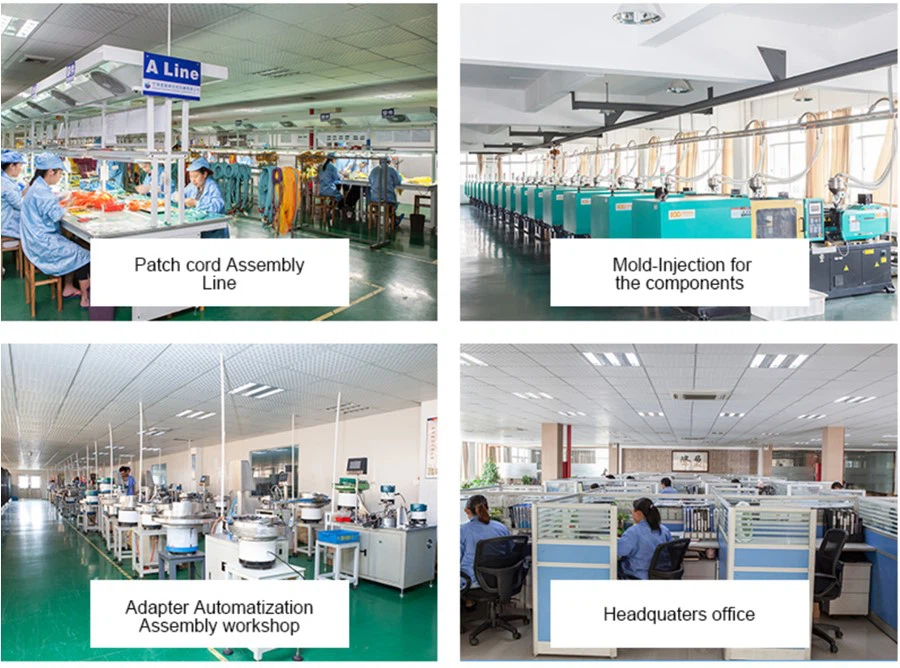

Company Profile

Zhejiang Yingfeng Optical Communication Co., Ltd. is an enterprise integrating R&D, production, sales and service. Specializing in the manufacture and sale of products in the field of optical fiber communication.we are confident our products will satisfy you.

I will be  here to solve your any problems,so welcome to contact me anytime,And i promise i will reply you in 24 working hours.

FAQ

1. Are you a factory?

We are a factory for over 30 years and our factory is located in Ningbo, Zhejiang, China.

2. Can you give me some small quantity of samples/orders?

Of course, we are willing to send you samples to check the quality. Some of our products have a minimum order quantity of 1 piece and small orders are also welcome.



3. Can I have my own branding/design on my products?

Yes, OEM and ODM orders can be accepted. We have a professional team for custom orders. Just tell us what you want and we will help you create the design you need.



4. How can you guarantee your quality control?

We have a dedicated quality inspection team that strictly controls quality from the beginning to the end of production. We do 100% quality control and every product will be carefully tested before it is packaged.



5. Our strengths:

①We have been in the fibre optic industry for more than 30 years, with rich experience and mature technology.

② We have a mature quality system and strictly control the quality of our products.

③We have our own core processing equipment, and our prices and quality are among the best in the industry.
