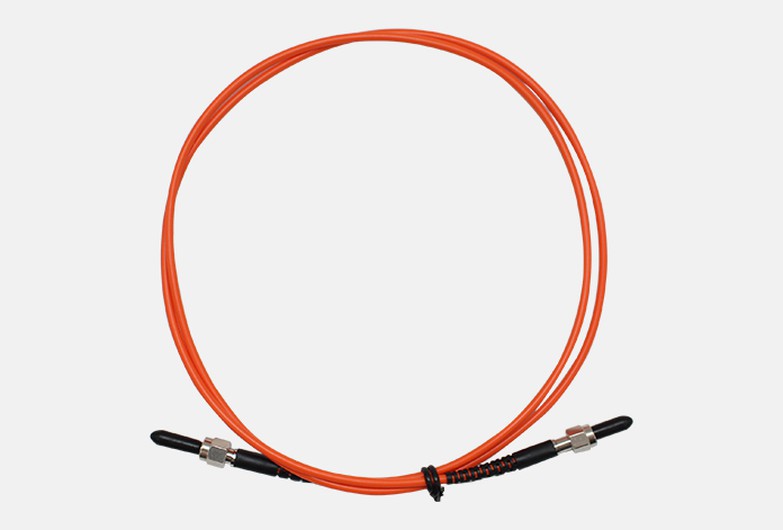

Name: SMA Optical Fiber Patch Cord
Brand: Yingfeng
SKU: 227237847

SMA Optical Fiber Patch Cords are not as commonly used in fiber optic networks as other connector types. However, they are used for some specific applications.SMA Optical Fiber Patch Cords have a threaded coupling mechanism for singlemode and multimode fibers and can support different fiber diameters such as 9/125μm and 50/125μm.

Features of SMA Optical Fiber Patch Cord

1.SMA connectors utilize a threaded connection mechanism, a structure that makes the installation and removal of the connector solid and reliable. Highly resistant to vibration and interference, suitable for use in harsh environments.

2. Can be used in single-mode and multi-mode fiber optic applications. In single-mode applications, SMA connectors are typically used to connect fiber optic sensors, fiber optic communication devices, measurement devices, etc. In multimode applications, SMA connectors can be used with multimode fiber optic adapters and devices.

3.SMA connectors can be adapted to different diameters of optical fibers. Make sure to choose the right SMA connector for the fiber diameter to ensure good optical transmission performance.

4. They are widely used in industrial, military and scientific fields. They are commonly used in applications such as lasers, fiber optic sensors, fiber optic measurement equipment, fiber optic communication equipment, etc.

parameter	SMA Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um

Packaging for SMA Optical Fiber Patch Cord

Yingfeng provides customized service, you can also choose to customize the product packaging
The following are the regular packaging forms of SMA Optical Fiber Patch Cord:
1.We will place the patch cords in rolled form in a plastic bag, this kind of packaging has a sealable feature to ensure the safety and protection of the patch cords.
2. After putting the jumper cables into a suitable cardboard box.
3.For longer SMA fiber optic patch cords, we may use spool packaging.

About US

Zhejiang Yingfeng Optical Communication is a trusted provider of optical communication solutions with over 40 years of industry experience. We specialize in a range of products including fiber optic patch cords, fiber optic connectors, fiber optic adapters, quick connectors, fiber optic splitters and fiber optic terminal boxes. to meet the needs of FTTX, FTTH and data center applications. Whether you need standard products or customized solutions, we offer OEM/ODM services to meet specific requirements.
